Description

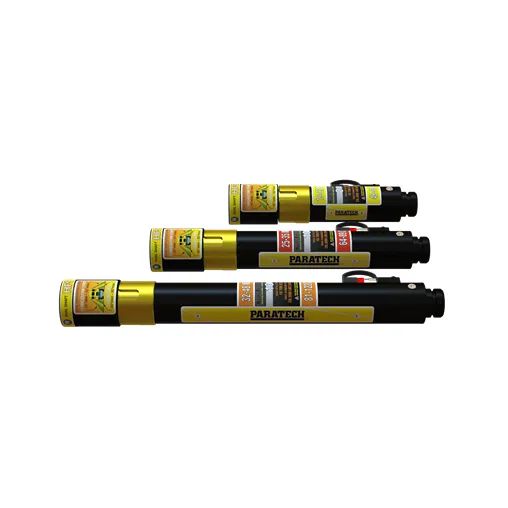

The Paratech HydraFusion Struts (AcmeThread) are comprised of a 3” diameter threaded aluminum shaft that extends hydraulically out of a 3 1/2” diameter aluminum tube. The hydraulic lift capacity is 10 U.S. tons with a 2:1 safety factor.
Once the strut is extended, the AcmeThread collar is spun down to the locked position and creates a 20,000 lbs. 4:1 safety factor for stabilization.
Place strut into position, ‘EXTEND’ threaded shaft into desired length,‘SPIN’ collar to ‘LOCK’ the strut.
It is as easy as… ‘EXTEND & SPIN TO LOCK’
Adjustments to the threaded shaft can be made in ANY increment up to the maximum length of the strut.
Hydrafusion (HFS) Struts and Kits
| Part No. | Description |
| 22-79HA04 | HydraFusion Strut 04 18.2 – 22.0 in / 46.2 – 55.8 cm |
| 22-79HA10 | HydraFusion Strut 10 25.2 – 35.0 in / 64.0 – 88.9 cm |
| 22-79HA16 | HydraFusion Strut 16 32.0 – 47.7 in / 81.3 – 121.2 cm |
| 22-79HA04K | HydraFusion Strut 04 Kit |
| 22-79HA10K | HydraFusion Strut 10 Kit |
| 22-79HA16K | HydraFusion Strut 16 Kit |
Hydrafusion (HFS) Accessories
| Part No. | Description |
| 22-790020G | HydraFusion Pump with Gauge |
| 22-790019 | Hydrafusion LongShore Screw Adapter |
| 22-790067 | Hydrafusion AcmeThread Screw Adapter |
| 22-796035 | Strut Converter |
