The Great Wall Of Rescue-Grain Rescue Panels

Description

Grain Bin Rescue Equipment Helping to Ensure Another Farmer Doesn’t Become a Statistic

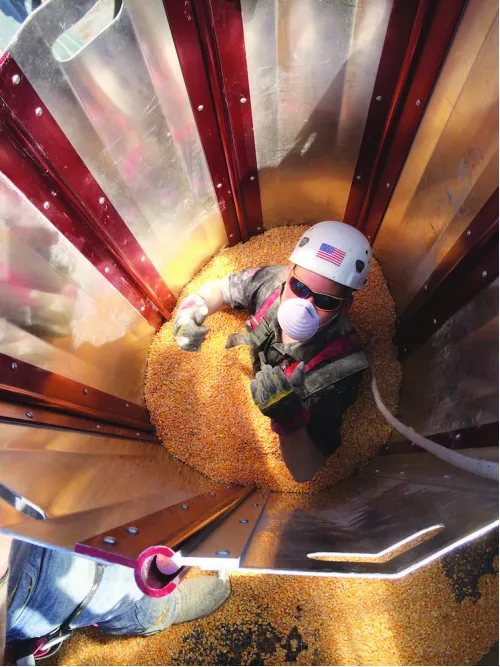

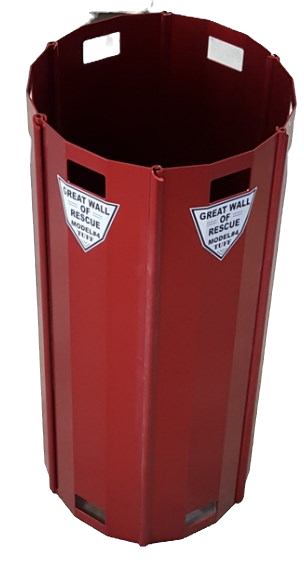

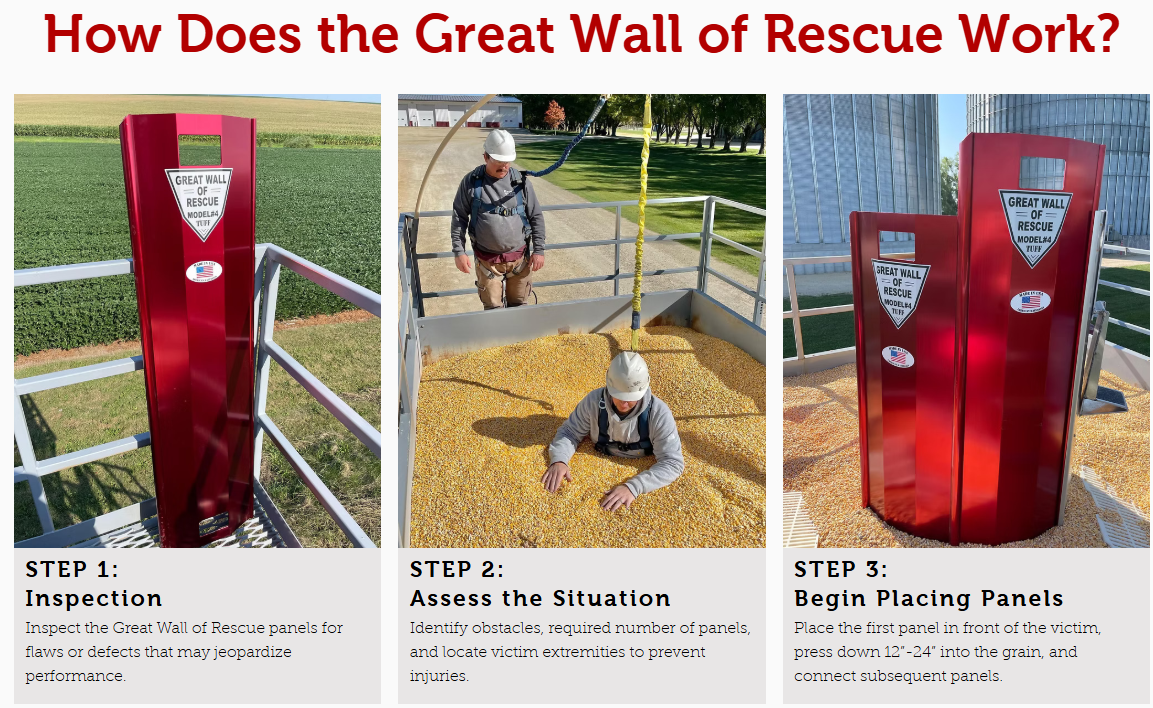

The Great Wall of Rescue was designed to adapt to a multitude of grain entrapment rescue scenarios. The lightweight wall sections are easily maneuvered and can be aligned to form a wall, a tube, or other irregular shape around the entrapped victim. Once inserted around the victim, The Great Wall of Rescue will stop the flow of stored/free-flowing grain towards the victim and block any additional pressure that may be created from rescuers. At this point rescuers will be able to start removing the grain around the victim, inside the tube. By having the Great Wall of Rescue system readily available, the chances of a successful grain entrapment rescue and the victim’s survival are significantly enhanced.

Grain Rescue Panels

• High-Quality, Lightweight Aluminum Panels
• Easily Maneuverable for Various Rescue Situations
• Greatly Increase the Odds of A Successful Rescue

Designed with a purpose… To Help Save Lives

• Adaptability: It can be used in a multitude of grain entrapment rescue scenarios.
• Lightweight: The wall sections are easy to maneuver, making the rescue process efficient.
• Versatility: The wall sections can be aligned to form a wall, a tube, or other irregular shapes as needed around the entrapped victim.
• Grain Flow Control: The wall stops the flow of stored/free-flowing grain towards the victim, reducing the risk of further entrapment.
• Pressure Blocking: The wall also blocks any additional pressure that may be created from rescuers during the rescue operation.
• Improved Rescue Process: The wall enables rescuers to start removing the grain around the victim safely from inside the tube.
• Increased Chances of Survival: Having The Great Wall of Rescue system readily available significantly enhances the chances of a successful grain entrapment rescue and the victim’s survival.

Accessories
A Great Wall System contains 6 (or 8) Panels, 1 Step, 1 Pipe, 4 Rescuer Platforms and 1 Carrying Case. Additional pieces can be purchased separately:

• The Pipe is slid through two handholds and acts as a handle for the victim, and also assists in pulling panels out of the grain when the rescue is complete.

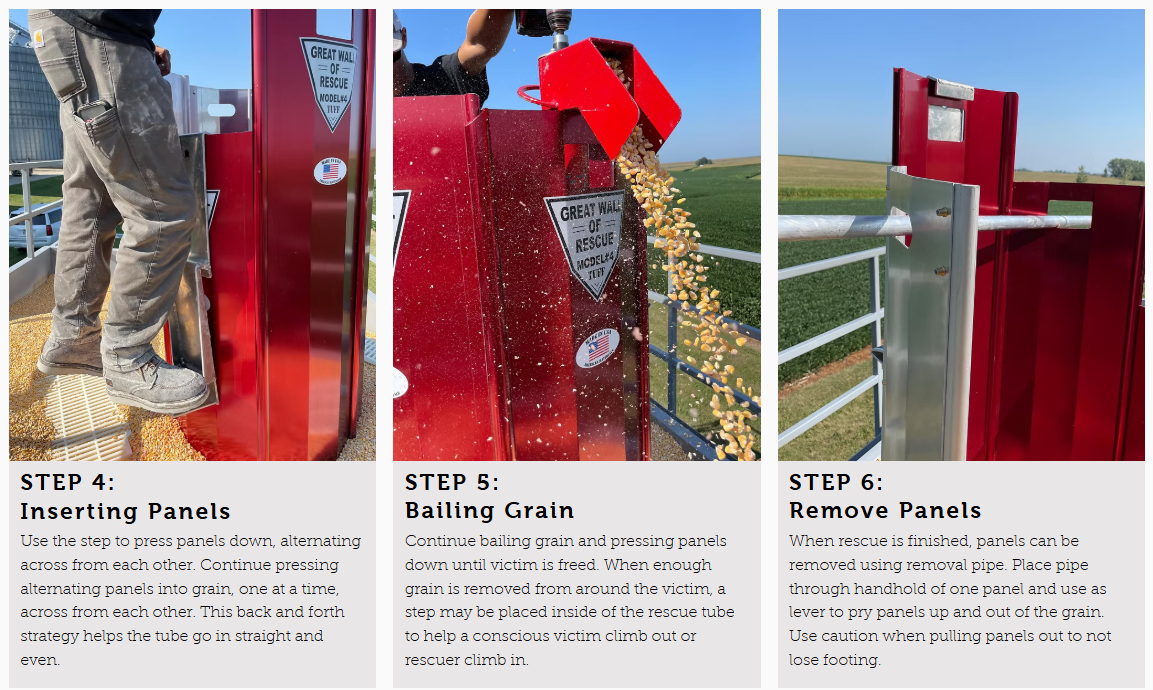

• The Insertion Step has two purposes: pressing panels into grain, and assisting a victim with climbing out of the grain. In cases where high moisture or high FM grain make wall section difficult, a rescuer can use all his body weight on the step to press the panels. The step is VERY durable.
• The included platforms provide a sturdy base for rescue workers to stand on during a grain extrication. The platforms prevent workers from sinking into the grain mass and decreases sidewall pressure on the wall/tube. Four lightweight 12”x24” poly platforms are included with each rescue set.
• Carrying Case: Dimensions: 62″ L x 22″ H x 18″ W Keep your Great Wall of Rescue in great condition by storing your entire system in our heavy duty carrying case. Fits up to 8 panels. Interior straps keep panels and all accessories secure. Stores upright or laying down. 6 handles make it easy for two people to transport.

MF6K Great Wall #4 Mill Finish (6 panels, 1 step, 1 pipe, 4 platforms, carry case) List: $3,000.00
MF8K Great Wall #4 Supreme (8 panels, 1 step, 1 pipe, 4 platforms, carry case)  List: $3,800.00
TF6K Great Wall #4 TuffKote (6 panels, 1 step, 1 pipe, 4 platforms, carry case) List: $3,300.00
TF8K Great Wall #4 TuffKote (8 panels, 1 step, 1 pipe, 4 platforms, carry case) List: $4,100.00
JPZ1 JPZ Rescue Auger List: $1,100.00
SPC Step and Pipe Combination List: $275.00
MFP1 Single Panel Mill Finish List: $440.00
TKP1 Single Panel TuffKote List: $460.00
RP1 Rescue Platforms List: $35.00
CC1 Carry Case List: $225.00
S1 Step List: $215.00
P1 Pipe List: $40.00
MFSP1 Mill Finish Split Panel List: $470.00
TKSP1 TuffKote Split Panel List: $485.00
